Ding Testing & Inspection: Tank Non-Destructive Testing (NDT), The Robust Shield Ensuring Tank Safety
Tank non-destructive testing (NDT) is a detection technology that does not damage the tank structure and is used to assess its integrity and safety. Ding Testing & Inspection offers a range of NDT services for tanks, including magnetic particle testing, penetrant testing, ultrasonic testing, and radiographic testing, all aimed at ensuring the safety and reliability of tanks.
Service Introduction
Tanks are containers for storing oil products and are one of the main facilities in the storage and transportation systems of oil depots. For a long time, many in-service tanks in China have had varying degrees of defects such as cracks and corrosion. Poor management during use has led to frequent safety accidents, causing equipment damage and casualties. Therefore, conducting non-destructive testing on in-service tanks is of great significance.
Inspection Scope
-
Crude oil tanks
-
Fuel oil tanks
-
Lubricating oil tanks
-
Edible oil tanks
-
Fire water tanks
-
Production oil tanks
-
Storage oil tanks
-

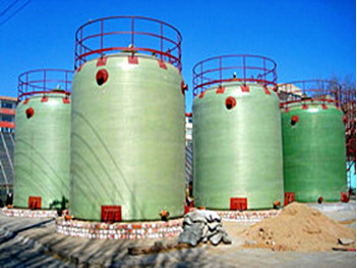

Vertical tanks
-

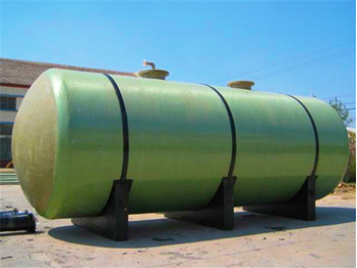

Horizontal tanks
-
Fixed-roof tanks
-
Floating-roof tanks
-

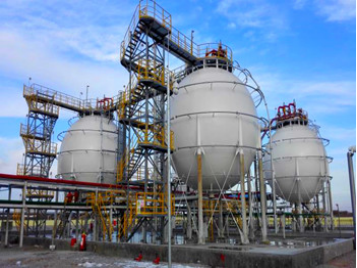

Spherical tanks
-
Large and small tanks
|
|
|
|
Non-Destructive Testing Methods
The commonly used NDT methods in tank construction are four conventional methods: radiographic testing, ultrasonic testing, magnetic particle testing, and penetrant testing. The choice of method depends on the type, size, orientation, and location of the defect, as well as the shape, size, welding position, and material of the tank component being inspected.
| Radiographic Testing | This method takes advantage of the characteristic that rays will be absorbed and scattered when passing through an object. When there are defects in the component being tested, or when the film density image of the ray passing through the defective area is different from that of the non-defective area, the type, quantity, and size of the defects can be determined based on the film density image. |
| Ultrasonic Testing | Widely used in industrial non-destructive testing, this method detects defects by utilizing the principle that different acoustic impedances at heterogeneous interfaces cause reflection of sound waves. |
| Magnetic Particle Testing | The principle is that when a workpiece is magnetized, a leakage magnetic field will form at the location of surface or near-surface defects. This leakage magnetic field will attract and gather magnetic particles applied during the testing process, thus revealing the defects. |
| Penetrant Testing | The basic principle is that the penetrant enters surface-opening defects in the workpiece due to its wetting action and capillary phenomenon, and is then adsorbed and imaged. |
|
|
|
|
|
|
Magnetic Particle Inspection Equipment
|
Penetrant Inspection Agents
|
Ultrasonic Flaw Detectors
|
Radiographic Inspection Equipment (X-ray)
|
Industry Pain Points
The industry faces challenges such as corrosion, fatigue, and welding defects that can occur during the use of tanks. These issues can lead to a decrease in tank strength, increasing safety risks and environmental hazards.
Service Scope
Ding Testing & Inspection offers a wide range of services covering tank NDT, including but not limited to:
-
Inspection of tanks in the petroleum and chemical industries
-
Inspection of storage containers in the food and beverage industries
-
Inspection of gas storage facilities
-
Inspection of water storage tanks and pressure vessels in nuclear power plants and industrial facilities
Application Fields
Tank NDT services are widely used in the following industries:
-
Petroleum and chemical industry
-
Food and beverage industry
-
Gas storage and distribution
-
Nuclear power plants and industrial facilities
Testing Standards
-
API 653 Standard for Inspection, Repair, Alteration, and Reconstruction of Aboveground Petroleum Storage Tanks
-
API 510 Pressure Vessel Inspection Code
-
ASME Section V Nondestructive Testing
-
EN 12973 Non-Destructive Testing of Tanks
-
ISO 19264 Non-Destructive Testing of Ships and Offshore Structures
Technical Solutions
Through these services and standards, we can address the following technical issues:
-
Standardized assessment of tank integrity and safety
-
Ensuring consistency and reliability of inspection results
Why Choose Ding Testing & Inspection?
-
Professional Tank Inspection Services: Utilize a range of non-destructive testing technologies, including ultrasonic testing (UT), magnetic particle testing (MT), radiographic testing (RT), and penetrant testing (PT), to comprehensively assess the integrity of tank structures and components.
-
Comprehensive Safety Assessment: Conduct detailed inspections of critical parts such as the hull, propulsion systems, piping, pressure vessels, and electrical systems to ensure overall vessel safety.
-
International Standard Compliance: Adhere to international standards such as ASME, API, ASTM, and EN to ensure the authority and consistency of inspection results.
-
Technical Support and Consultation: Provide professional technical support and consulting services to help clients address technical issues related to tank inspection.
-
Detailed Inspection Reports: Offer detailed inspection reports and data analysis to provide scientific basis for client decision-making.
Choose Ding Testing & Inspection, choose to walk alongside high-quality testing technology, choose to be with trustworthy data and reports, and choose to be recognized by well-known industry clients!
Contact Us
Contact Ding Testing & Inspection immediately to let our professional team provide expert-level solutions for your tank non-destructive testing. Whether it is technical consultation or on-site testing, we will provide the best service experience.
About Ding Testing & Inspection
Ding Testing & Inspection was founded by senior industry professionals and strictly follows international standards such as ISO/ASTM/ASME/JIS/GB/EN/API to conduct testing, experimentation, appraisal, and assessment work. It also has a world-class corrosion laboratory and has gained recognition from many top international and domestic industry clients. In the fields of corrosion, material failure analysis, and inspection and testing of energy materials, we have a good reputation and client recognition.
